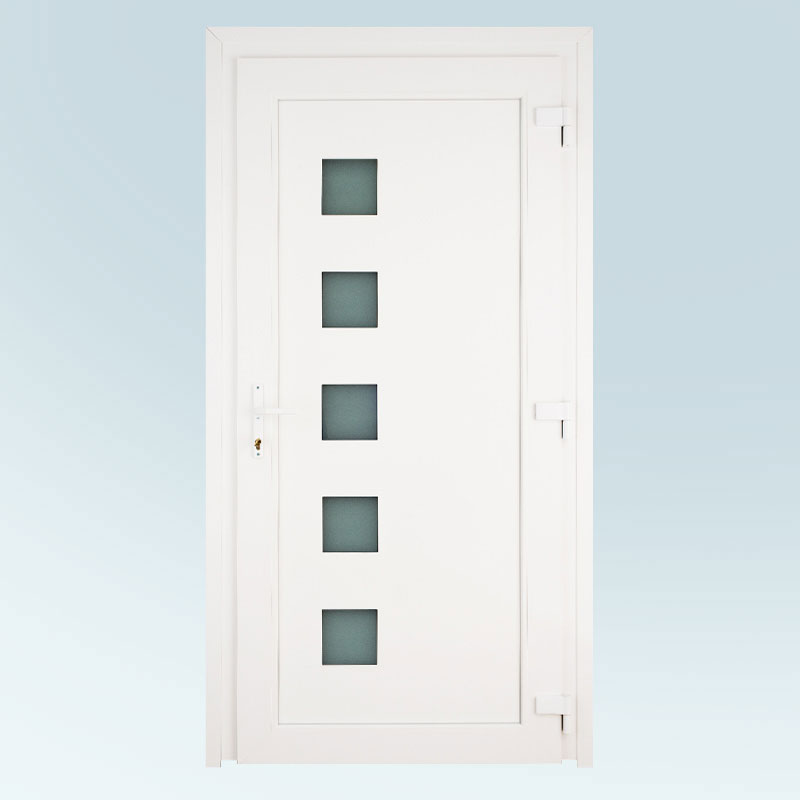

RESIDENTIAL DOOR 76AD Plus (Main Entrance)

1.500,00 1.600,00

High thermal insulation Central Entrance Frame, with a total face width of 182 mm.
The synthetic central entrance window KÖMMERLING 76 AD Plus is a complete ecological proposal with excellent thermal insulation, sound insulation and sealing properties, which are complemented by the significant performance in burglary protection and time resistance. The window is offered in a wide variety of colors, to fit harmoniously with its mounting point, while the smart connection technology characterizes the functionality and practicality of its installation.

& nbsp;

The values ​​listed are indicative and may change after the measurement.

Clear
SKU: N/A Category: Product ID: 3199

Description

Features:
  • Reinforcement of sheet and frame thermo-galvanized steel 2-3 mm thick

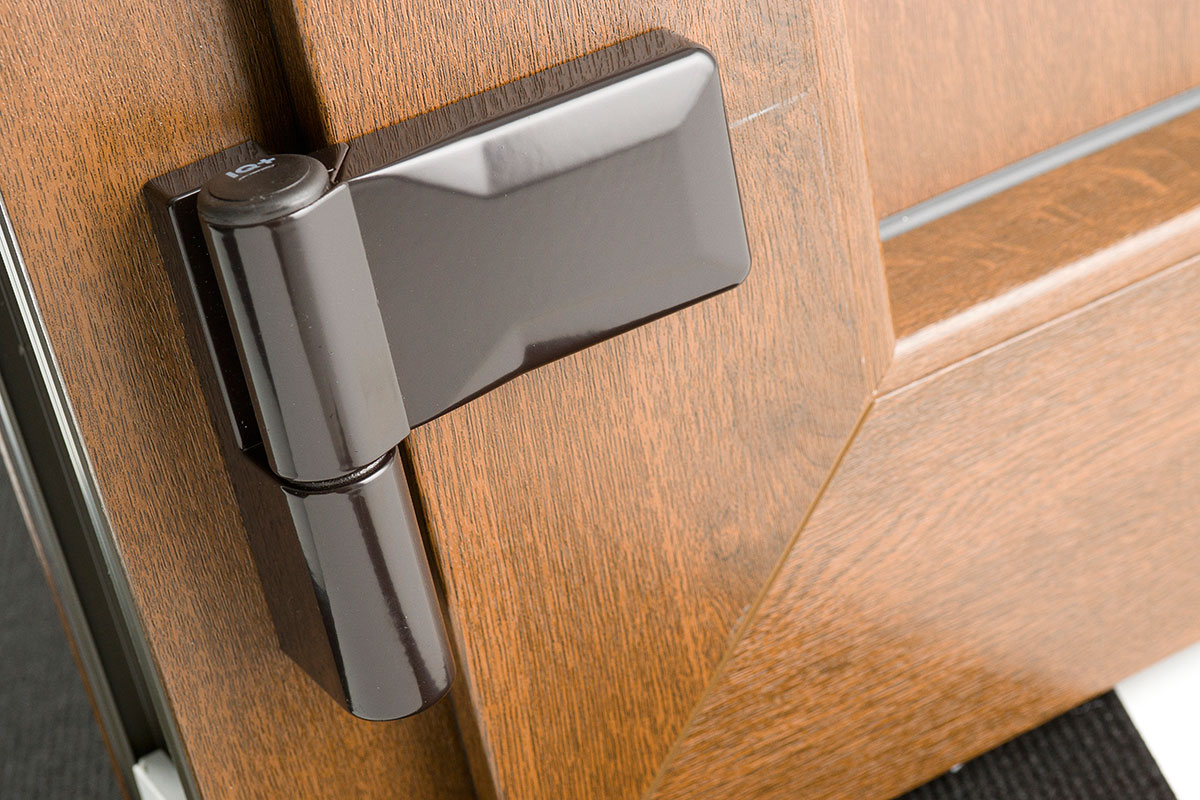

  • Mechanism: Application of automatic three-point GU locking mechanism and external hinges with a maximum weight of 160 kg / piece.
  • Built-in sealing rubber in the frame and in the sheet
  • Thermal bottom with detachable lid
  • 100% Recyclable and with environmentally friendly stabilizers
  • Charging groups according to DIN EN 12207/12208/12210
Specifications:
  • Thermal insulation: Uf 1.2 W / m2K
  • Sound insulation up to 47 db according to DIN EN ISO 140-3
  • Burglar protection up to RC 2 according to DIN V ENV 1627
  • Wind permeability according to DIN EN 12207 Category: 4
  • Water permeability according to DIN EN 12208 Category: 9A
  • Resistance to wind pressure according to DIN EN 12210: Category: C2 / B2
  • Mechanical strength according to DIN EN 13115 Category: 4
Dimensions:
  • Case profile depth: 76 mm
  • Case face width: 85 mm
  • Maximum glazing thickness: 16-48 mm
  • Sheet profile depth: 76 mm
  • Sheet width: 126 mm

Additional information

Brand

Kömmerling
